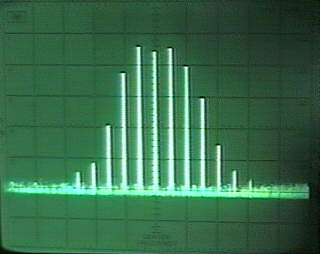

 10 Mhz @ +10 dbm 20 Mhz / div |

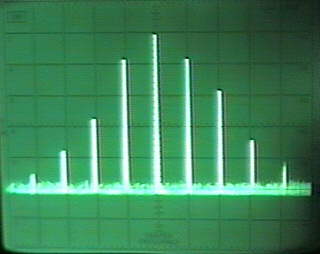

 20 Mhz @ +10dbm 20 Mhz / div |

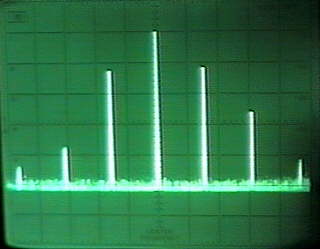

 30 Mhz @ +10 dbm 20 Mhz / div |

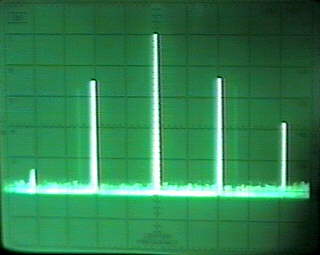

 40 Mhz @ +10 dbm 20 Mhz / div |

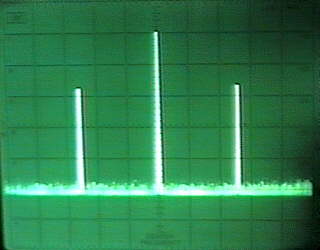

 50 Mhz +10 dbm 20 Mhz / div |

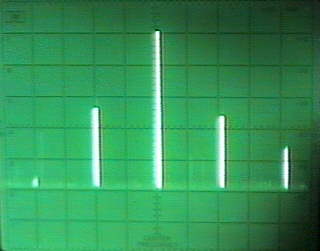

 100 Mhz @ +10 dbm 50 Mhz / div |

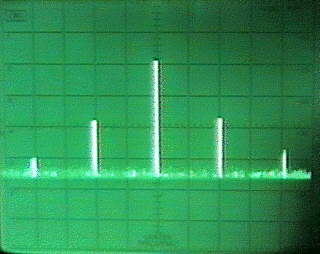

 200 Mhz @ +10 dbm 100 Mhz / div |

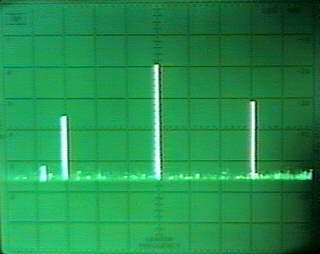

 300 Mhz @+10 dbm 100 Mhz / div |

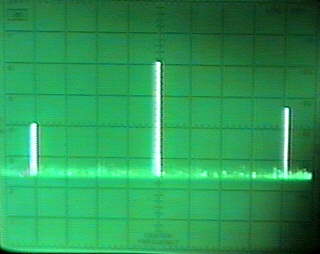

 400 Mhz @+10 dbm 100 Mhz / div |
Note: There was a level shift between the 100 and 200+ Mhz tests. This was an OFF air test and I accidently bumped the receive horn and didn't notice it till I looked at the photos. I'll redo this again time permitting plus try to get a photo of the GP being modulated at 500 Mhz !!! |
