Photos of Florod Corporation YAG Laser System

This is a Florod Corporation LCP xenon/YAG cutting laser system with X/Y beam delivery and CCTV camera mount, 1 Hz repetition rate.

Florod Corporation YAG Laser System.

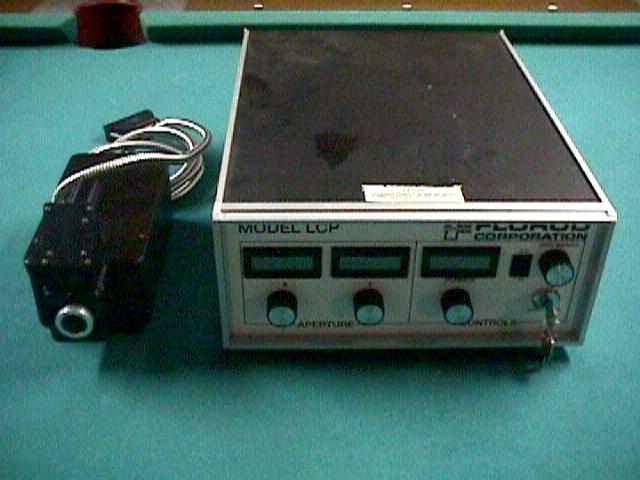

- View 01 - Florod laser system.

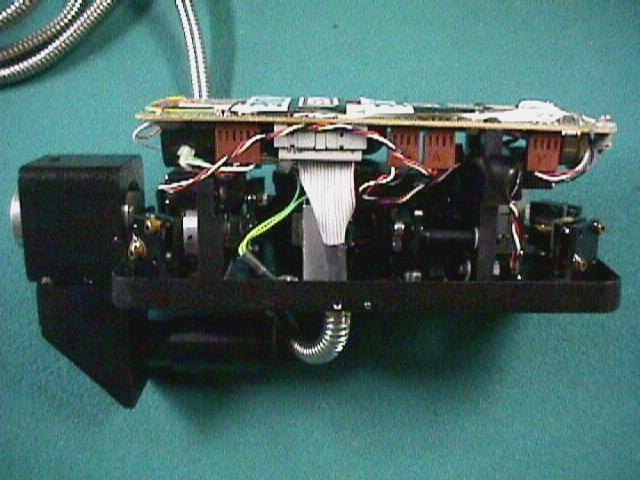

- View 02 - Laser head right side optics and servo's for beam movement.

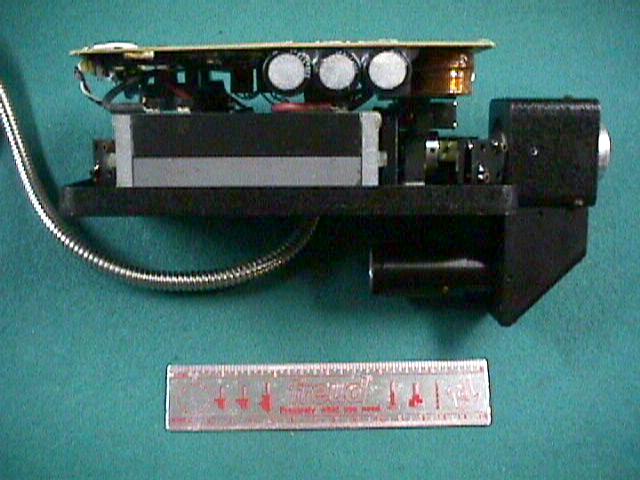

- View 03 - Laser head left side pulse former power supply and laser cavity with resonator (shown with 6" rule).

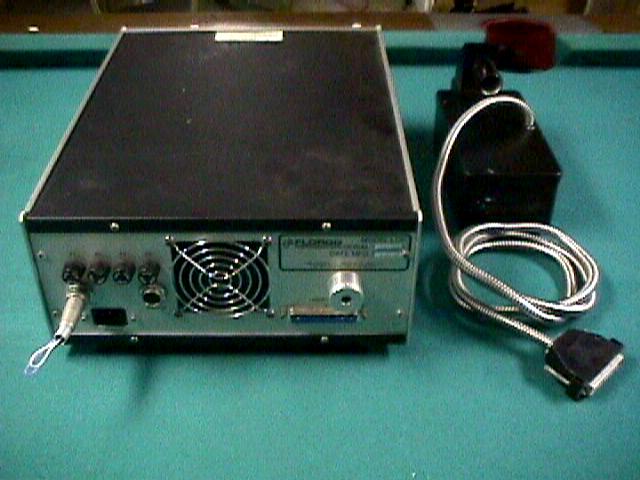

- View 04 - Power supply, rear view.

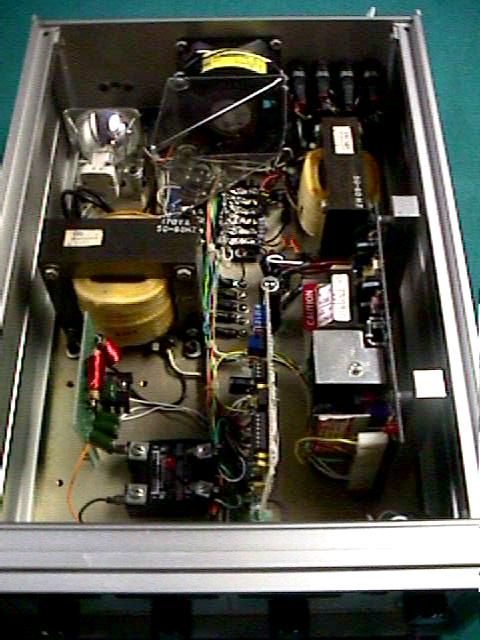

- View 05 - Power supply, top view.

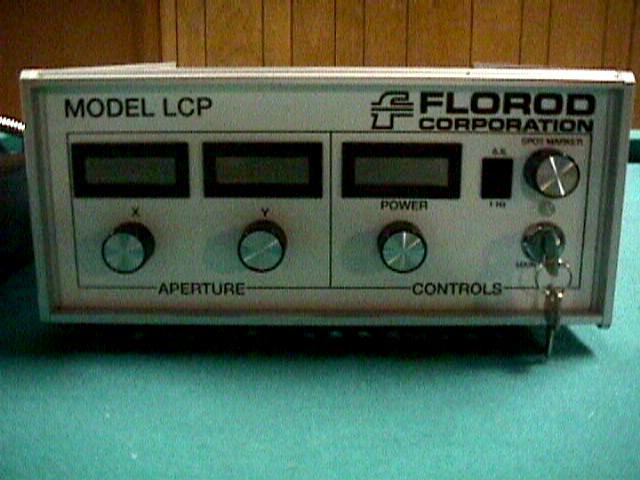

- View 06 - Control panel X/Y delivery and laser power adjustment.

Florod Corporation YAG Laser System

(Photos provided courtesy of: Curt Graber (cgraber@fwi.com)).

.
