Photos of Hughes Freqeuncy Doubler for YAG Laser

Go to Sam's Laser FAQ Table of Contents.

Photos of Hughes Freqeuncy Doubler for YAG Laser

This is a beam modifier module (not a complete laser head) for an external 1064 nm Nd:YAG laser. Shoot a 1064 nm beam in one end and the KDP crystal in the frequency doubler produces a 532 nm (green) beam out the other. As can be inferred from its size, this module can handle the beam from a high power Nd:YAG laser!

Hughes Freqeuncy Doubler Module.

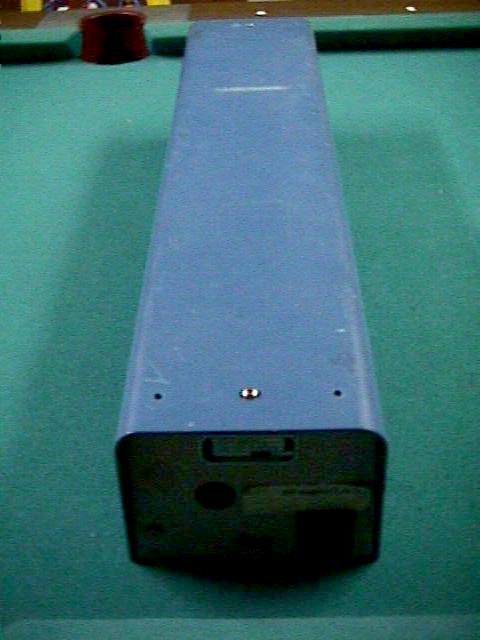

- View 01 - Doubler module with cover.

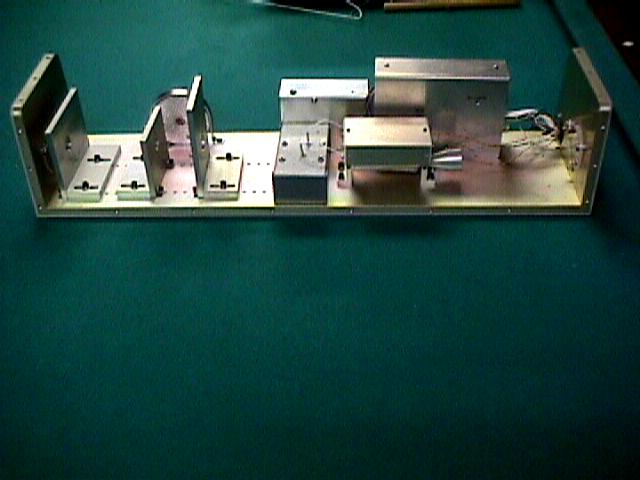

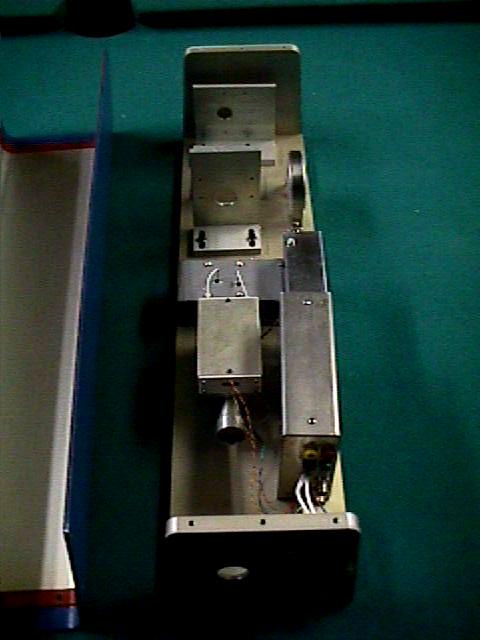

- View 02 - Top view.

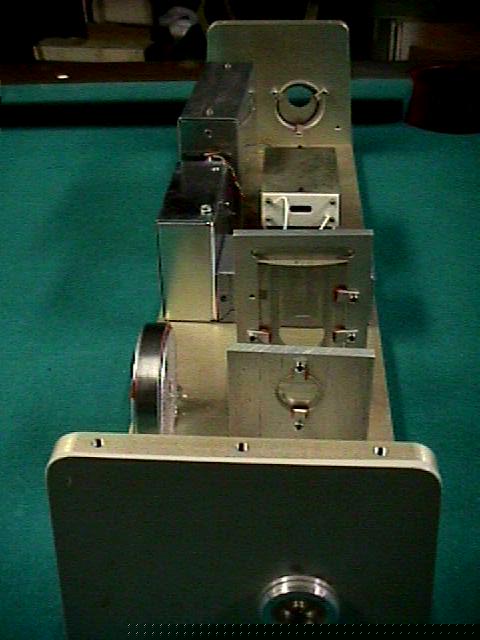

- View 03 - Side view.
- View 04 - Back view.

Hughes Freqeuncy Doubler Module

(Photos provided courtesy of: Curt Graber (cgraber@fwi.com)).

. View 02

. View 03
