Photos of Laser Sonics YAG Laser

This is a Laser Sonics model 8000, 150 W medical YAG laser system, pulsed or CW, which runs on three-phase 230 VAC.

Laser Sonics model 8000 YAG Laser

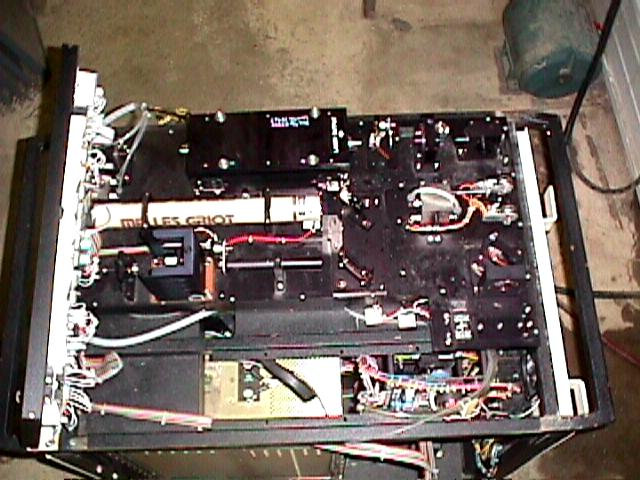

- View 01 - Optics, top view.

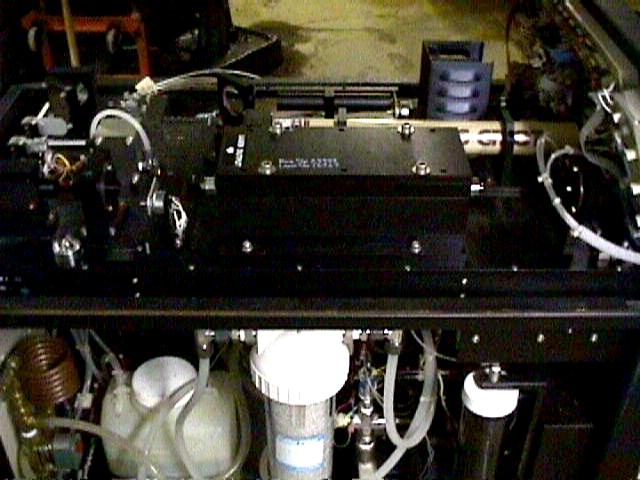

- View 02 - Laser cavity.

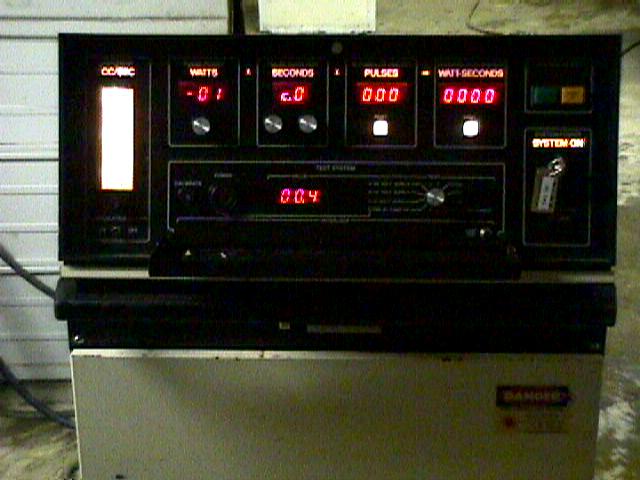

- View 03 - Control panel.

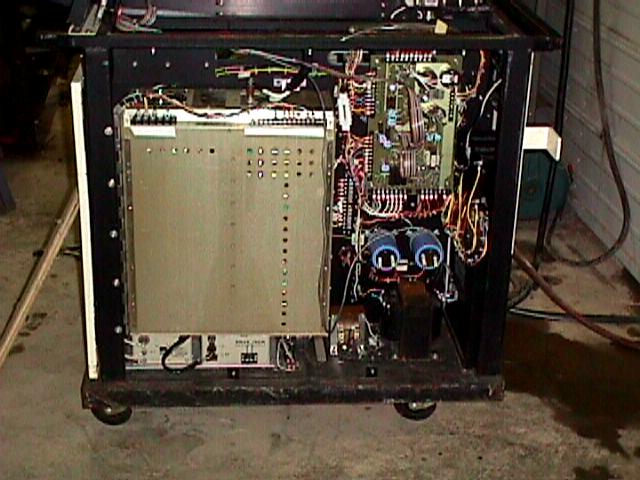

- View 04 - Power supply.

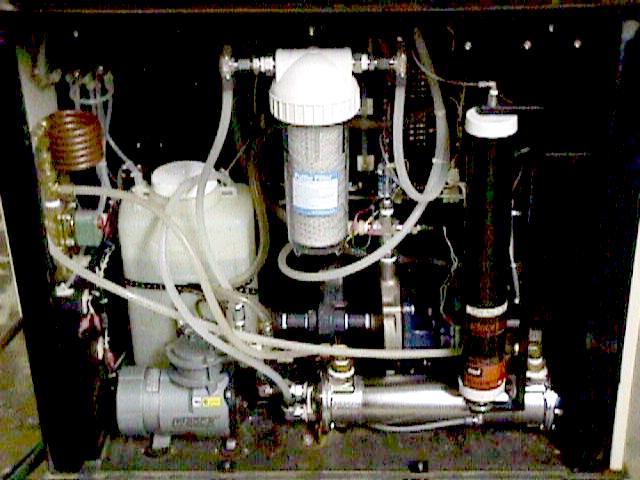

- View 05 - Cooling system.

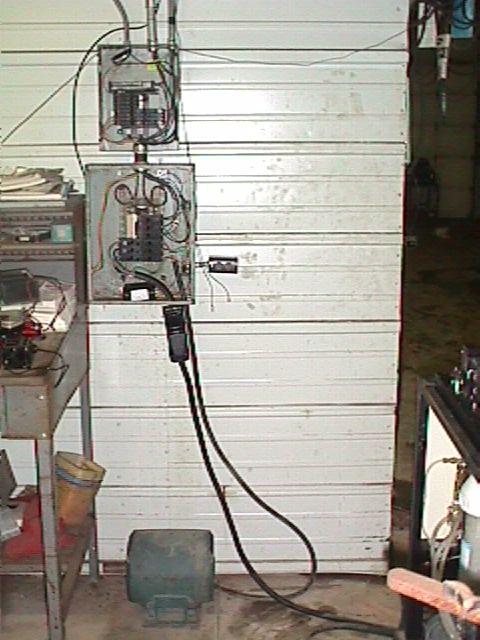

- View 06 - Homemade phase inverter system (converts 230 VAC single-phase 120 A service into 230 VAC three-phase 110 A service).

There is much more information on ion lasers in Sam's Laser FAQ beginning with the chapter: Argon/Krypton Ion Lasers.

Laser Sonics model 8000 YAG Laser

(Photos provided courtesy of: Curt Graber (cgraber@fwi.com)).

View 01 . View 02 . View 03 .

View 04 . View 05 . View 06 .
