Photos of Lexel Laser Corporation Lasers and Power Supplies

Lexel argon and kryption ion lasers are probably the second most common types available on the surplus market. Depending on particular model and configuration, they are capable of between a few hundred mW and many WATTs of output power and may be fitted with single or multi-line optics. The Lexel Model 75 is a small air-cooled laser.

(Photos and descriptions provided courtesy of: Curt Graber (cgraber@fwi.com)).

Lexel Laser Model 75 Laser System in Operation.

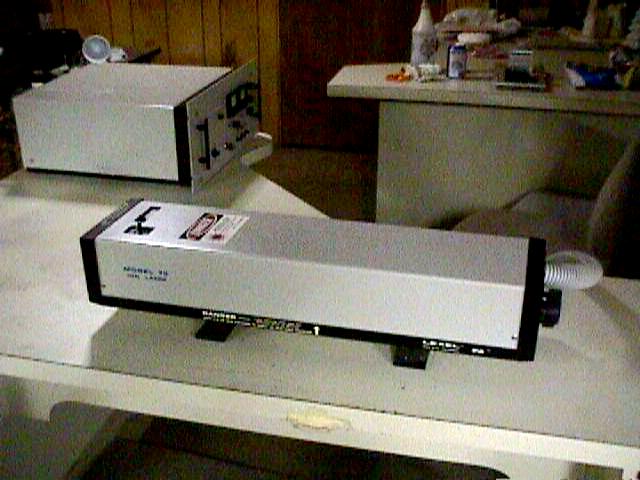

- View 01 - Lexel-75 head and PSU.

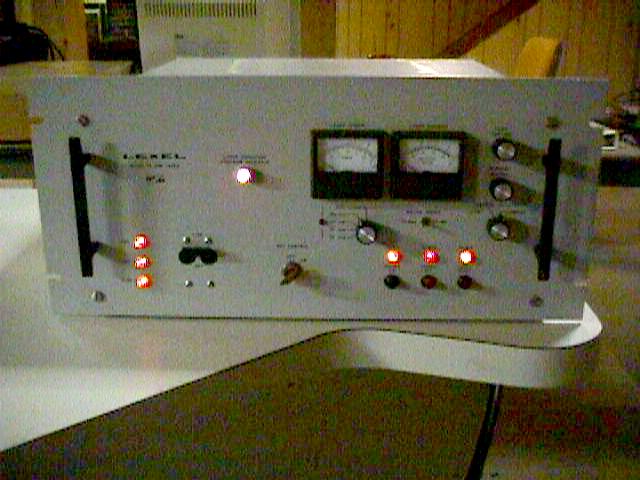

- View 02 - PSU powered up and ready to fire.

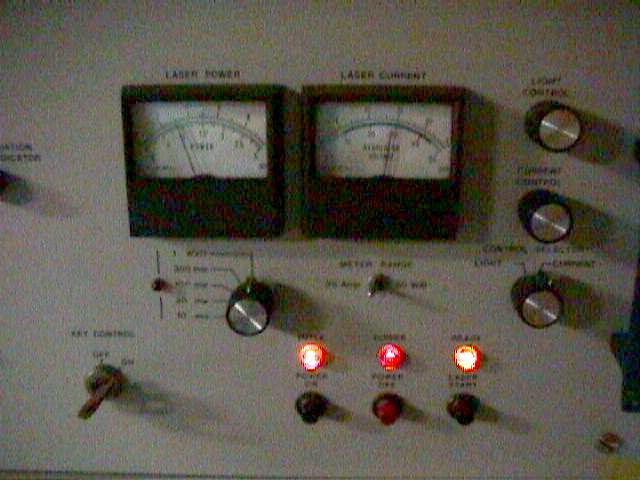

- View 03 - Meters showing 14.6 amps and 355mw output on all lines.

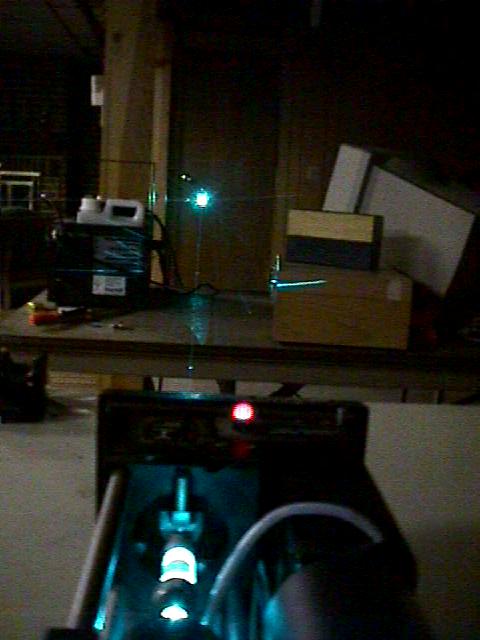

- View 04 - Unit firing in bright light - beam is still vivid and intense!

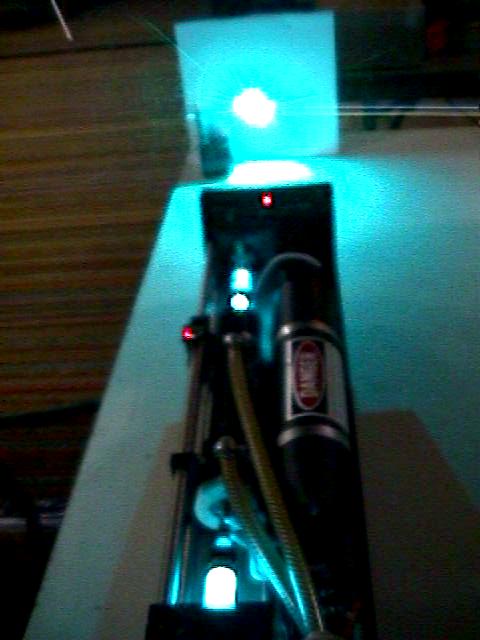

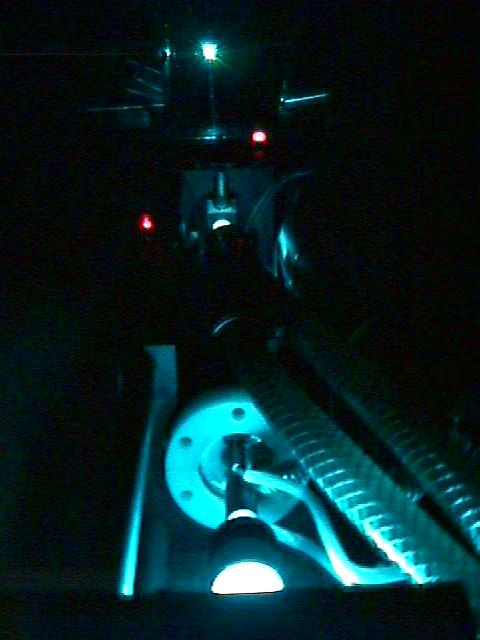

- View 05 - Same picture with the lights off.

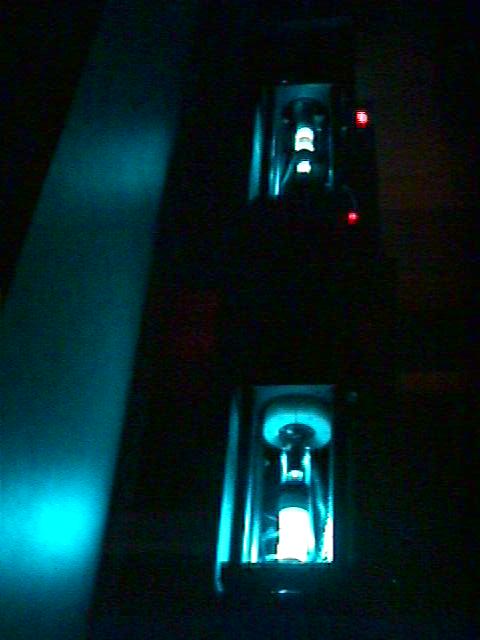

- View 06 - Top view with lights off disk.
Lexel Laser Model 75 Laser Head.

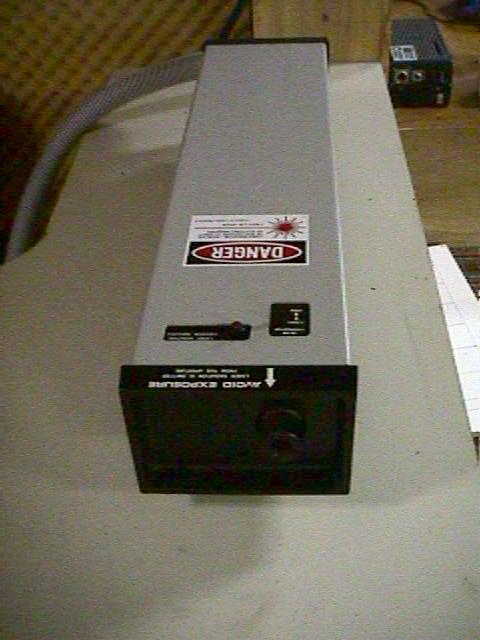

- View 01 - Business end of a 400+ mW potential.

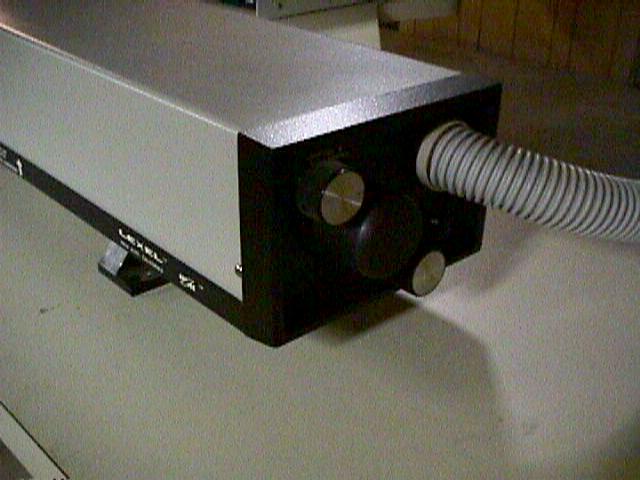

- View 02 - Rear mirror tuning knobs and UMB cable in.
- View 03 - Right side view of Lexel-75 head.
- View 04 - Rear Brewster window lit with serious amounts of light.
- View 05 - Front Brewster window. Note the beam shutter switch.

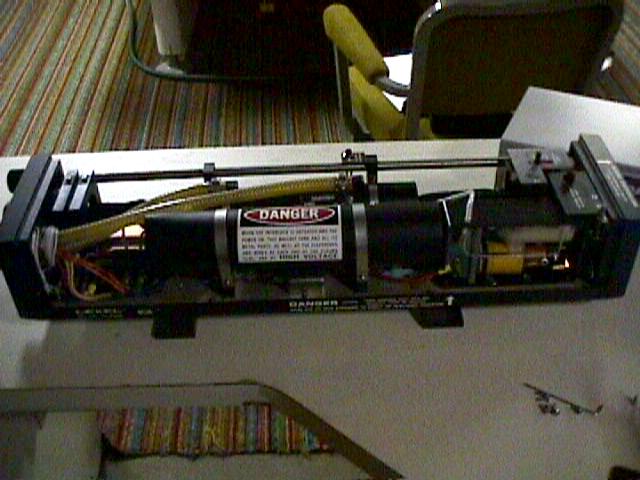

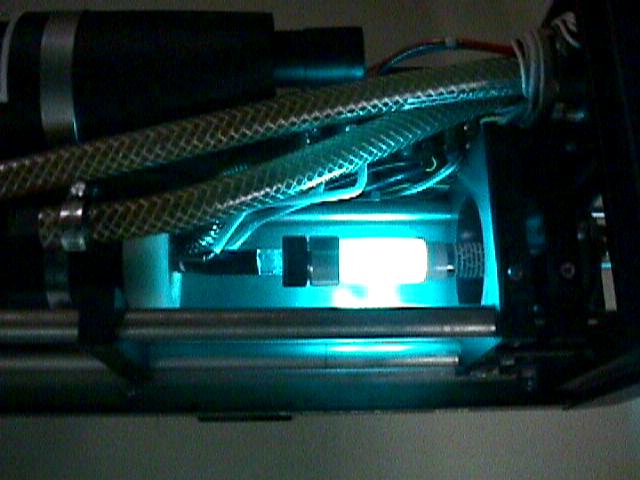

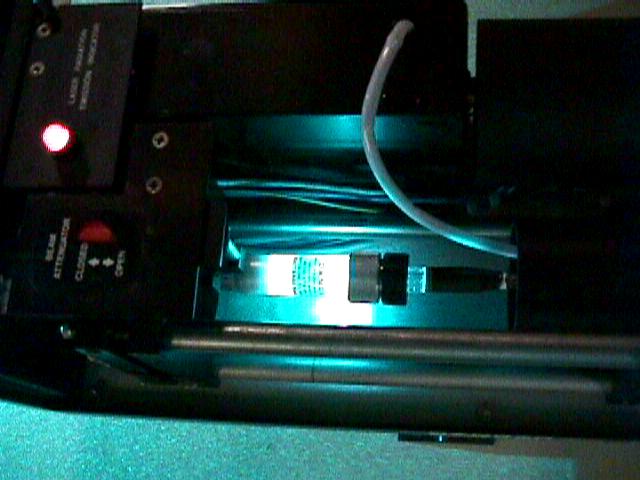

- View 06 - Under the hood of this argon system running at nearly maximum power.

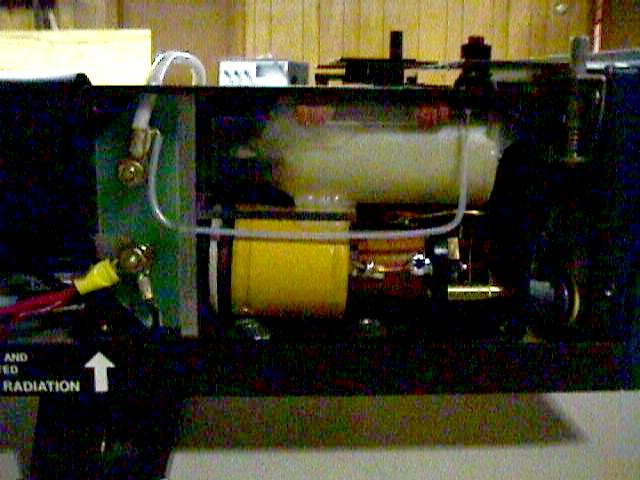

- View 07 - Head Tesla ignitor card and coil.

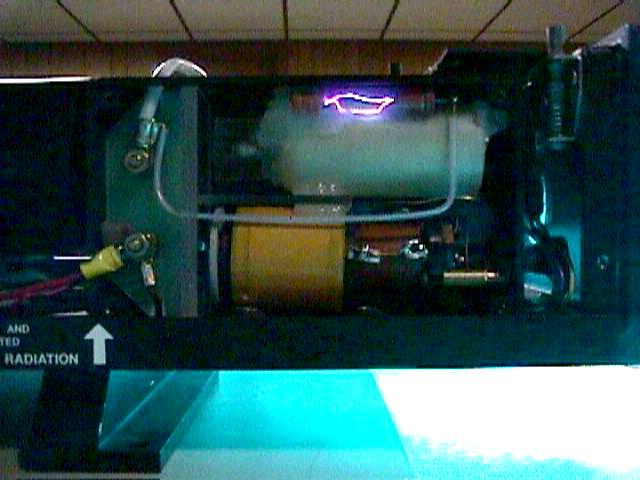

- View 08 - Tesla coil firing the tube up with a pulse of high frequency high voltage.
Lexel Laser Corporation Power Supply.

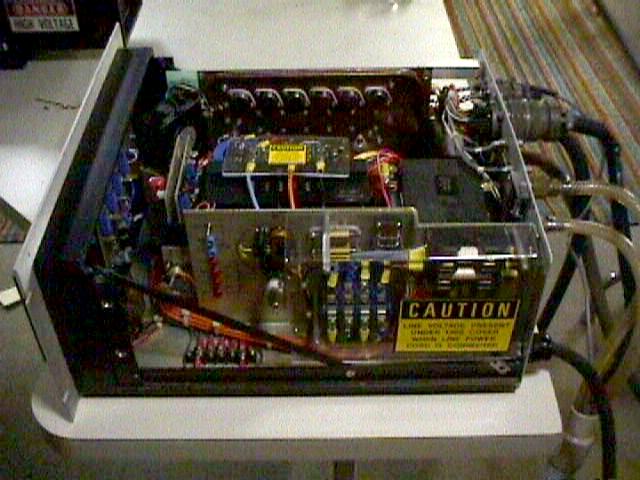

- View 01 - Lexel power supply with the lid off.

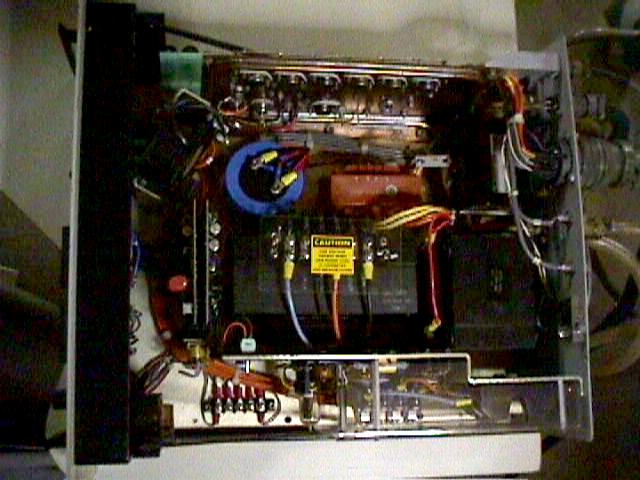

- View 02 - PSU top view. Transformer and adjustable taps center front.

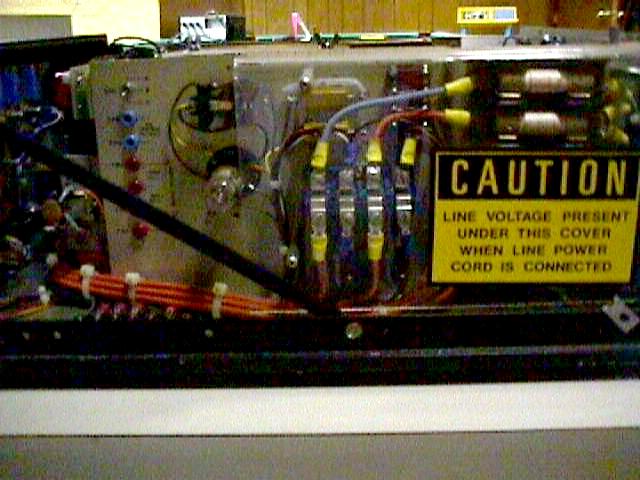

- View 03 - PSU right side view test connectors and fuse board.

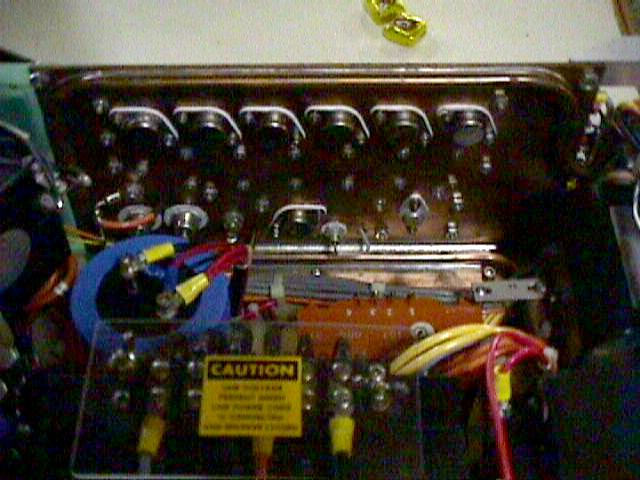

- View 04 - PSU passbank transisters and cold plate.

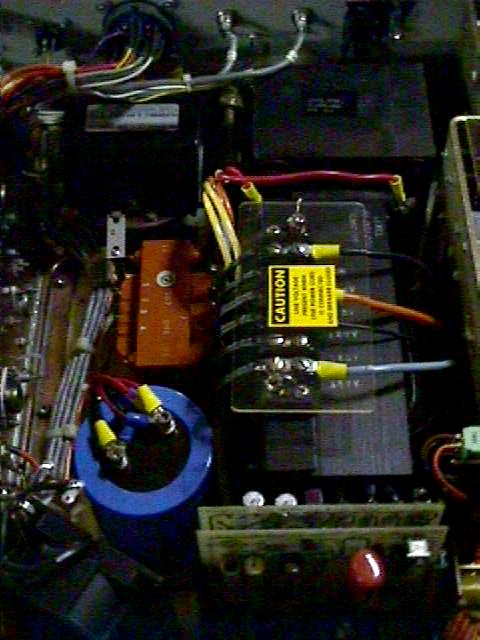

- View 05 - PSU transformer taps.

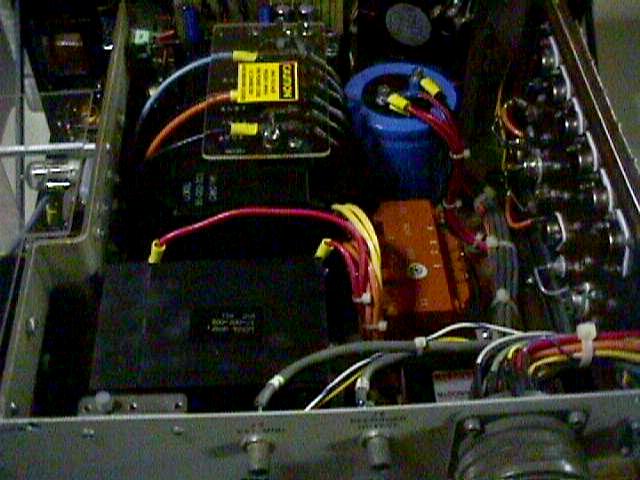

- View 06 - PSU rear view.

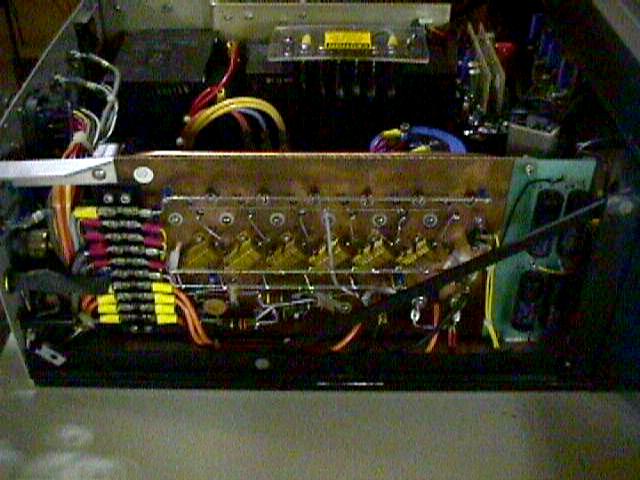

- View 07 - PSU reverse side of passbank and cold plate.

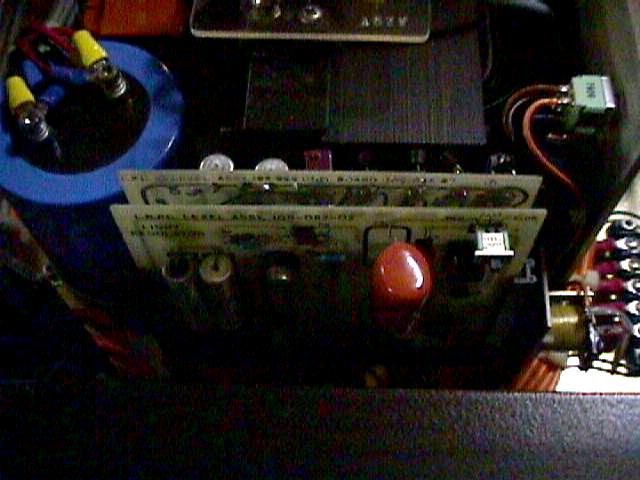

- View 08 - PSU controller cards.

There is much more information on ion lasers in the Argon/Krypton Ion Lasers chapter of Sam's Laser FAQ. This Lexel power supply is probably similar to the one described in section: Lexel-88 Power Supply and Laser Head (Lexel-88).
