Very
old CCD camera info!
MB 750 Camera
Series
- Electronic Iris
- 420 Lines of Resolution
- Ultra Compact for Security
- 8-14 Volts DC (9VDC Standard)
- Excellent Low Light Performance
- Reliability - All units are
pre-tested and burned in to insure fault-free
operation. High quality parts and excellent
engineering combine to make this camera a proven
WINNER.
|
- Super Compact - The MB-750 is about
1.26" square in size, without loss in
picture quality. One piece compact board for easy
installation or concealment.
|
- Shock Resistant -
High Density ASIC chip set makes the magic! Ultra
reliable SMD parts withstand shock and vibration.
Being rugged/durable and compact makes this our
most popular design.
|
- Easily Mounted -This module comes with
mounting holes on the PCB allowing for easy installation. Its small
size and light weight is perfect for multimedia
and video communications. Weighs less than 1 oz.
|
- Power Supply - Simple! Power, Video
& Ground-3 wires, that's it. Unit uses very
low power 8-14V DC at 100ma. For convenience, you
can use a standard 9 volt battery.
|
MB-750 Camera
Specifications
| Pickup Device |
1/3" Interline Transfer CCD |
| Scanning System |
2:1 Interlace |
| Horizontal Resolution |
420 - TV Line |
| Synchronization |
Internal |
| Signal To Noise Ration |
45 dB or more |
| Auto Gain Control |
On |
| Video Output |
1 Vpp Composite at 75 Ohm |
| Effective Pickup Area Pixel |
512(H) x 492(V) |

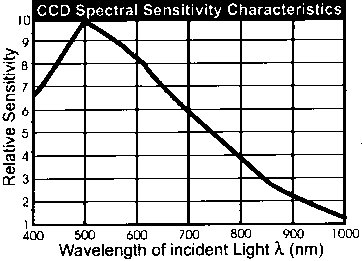

| Light Sensitivity |
N-30 IRE, .1 LUX |
| Lens Interface |
750-P - 2.8mm |
| Auto Iris |
Elec. Shutter, Max 1.100 Sec. |
| Gamma |
0.45 |
| Input Voltage |
8 - 14 VDC |
| Power Consumption |
100 - 100mA |
| Operating Temperature |
-10deg. C to +55 deg. C |
| Weight |
15 Grams .9oz. |
